CDH6.2离线安装

前言

最近在公司搭建了一个 CDH 测试环境集群,从官网得知 CDH 在 6.3.3 版本开始不再提供免费版本了,于是选择了 6.2.x 版本进行安装,这里记录一下正确的离线安装步骤,避免下次安装时又踩坑。

CM 和 CDH 简介

在安装之前先要理清一下 CM(Cloudera Manager)和 CDH(Cloudera Distribution Hadoop)的区别。

  • CDH
    CDH 是由 Cloudera 公司发行的一套 hadoop 软件包,里面包含了hadoop、hdfs、yarn、hive、spark等等一系列稳定的版本兼容的大数据套件。
  • CM
    CM 也是 Cloudera 公司开发的一套用于管理和监控 CDH 集群的软件,只要通过 CM 提供的 web 管理页面操作就可以轻松的管理和监控 CDH 集群环境。
    当然也可以手动使用 CDH 来搭建集群,在服务器数量较少的情况下还可以接受,但是试想下如果集群有上百台或上千台机器,每个机器都手动安装,这是人做的事吗?

安装前准备

注:不知道什么时候开始CDH官网已经把离线下载资源入口都关掉了,不过好在我之前下载的文件都还在,现在分享到google driver里了,链接:https://drive.google.com/drive/folders/1KZLRvYeSeygmPkoJWsNhQvLK4MgPiR5D?usp=sharing

服务器

准备好 N 台服务器,我这里用了 3 台机器,分别如下:

IPCPU内存硬盘系统
192.168.200.1354 核16G50GCentOS7
192.168.200.1364 核16G50GCentOS7
192.168.200.1374 核16G50GCentOS7

:所有机器的 root 用户登录密码要保持一致

域名设置

为三台机器设置好对应的域名,并在hosts中做好对应的 IP 解析。

IP域名
192.168.200.135master.cdh
192.168.200.136node1.cdh
192.168.200.137node2.cdh

修改所有机器的/etc/hosts文件,在后面加入以下内容:

1
2
3
192.168.200.135 master.cdh
192.168.200.136 node1.cdh
192.168.200.137 node2.cdh

分别设置机器的主机名,执行以下命令

  • 192.168.200.135
    1
    hostnamectl set-hostname master.cdh
  • 192.168.200.136
    1
    hostnamectl set-hostname node1.cdh
  • 192.168.200.137
    1
    hostnamectl set-hostname node2.cdh

关闭防火墙和 SELinux

关闭所有机器的防火墙和 SELinux,执行以下命令:

  • 关闭防火墙
    1
    2
    systemctl stop firewalld
    systemctl disable firewalld
  • 关闭 SELinux
    编辑/etc/selinux/config文件,将SELINUX=enforcing修改为SELINUX=permissive
    执行命令setenforce 0临时生效,或者重启机器永久生效。

搭建本地 yum 源

master节点上搭建本地源用于离线安装CM

  • 使用httpd作为本地源服务
    1
    2
    yum install -y httpd
    systemctl start httpd
  • 下载 CM 离线包

    1
    wget https://archive.cloudera.com/cm6/6.2.1/repo-as-tarball/cm6.2.1-redhat7.tar.gz

    下载慢的话可以用ProxeeDown或者IDM这类高并发下载器进行下载,再复制到master节点。
    还是下载不动的话只能挂梯子下了。

  • 解压到对应目录

    1
    2
    mkdir -p /var/www/html/cloudera-repos/cm6
    tar xvfz cm6.2.1-redhat7.tar.gz -C /var/www/html/cloudera-repos/cm6 --strip-components=1
  • 验证

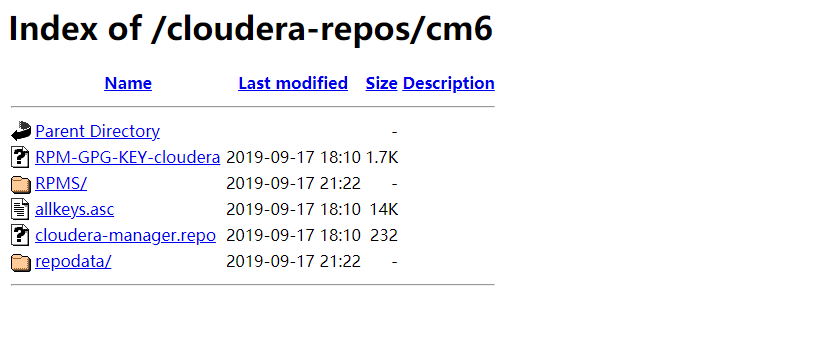

    浏览器访问http://master.cdh/cloudera-repos/cm6,安装成功的话可以看到下图:

  • 源配置
    只需要在master.cdh节点上配置即可

    1
    touch vi /etc/yum.repos.d/cloudera-repo.repo

    在文件中写入以下内容:

    1
    2
    3
    4
    5
    [cloudera-repo]
    name=cloudera-repo
    baseurl=http://master.cdh/cloudera-repos/cm6
    enabled=1
    gpgcheck=0

安装 JDK

所有机器上安装好 jdk,这里我安装的是openjdk1.8

1
yum install -y java-1.8.0-openjdk-devel

安装 CM

master节点安装 CM

1
yum install -y cloudera-manager-daemons cloudera-manager-agent cloudera-manager-server

之前配置好了本地 yum 源,现在通过 yum 安装 CM 会非常的快,直接使用本地的包

安装 MariaDB

master节点上安装一个数据库,这里我安装的是MariaDB

1
yum install -y mariadb-server

修改数据库配置文件/etc/my.cnf,使用官方提供的配置进行替换:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
[mysqld]
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
transaction-isolation = READ-COMMITTED
# Disabling symbolic-links is recommended to prevent assorted security risks;
# to do so, uncomment this line:
symbolic-links = 0
# Settings user and group are ignored when systemd is used.
# If you need to run mysqld under a different user or group,
# customize your systemd unit file for mariadb according to the
# instructions in http://fedoraproject.org/wiki/Systemd

key_buffer = 16M
key_buffer_size = 32M
max_allowed_packet = 32M
thread_stack = 256K
thread_cache_size = 64
query_cache_limit = 8M
query_cache_size = 64M
query_cache_type = 1

max_connections = 550
#expire_logs_days = 10
#max_binlog_size = 100M

#log_bin should be on a disk with enough free space.
#Replace '/var/lib/mysql/mysql_binary_log' with an appropriate path for your
#system and chown the specified folder to the mysql user.
log_bin=/var/lib/mysql/mysql_binary_log

#In later versions of MariaDB, if you enable the binary log and do not set
#a server_id, MariaDB will not start. The server_id must be unique within
#the replicating group.
server_id=1

binlog_format = mixed

read_buffer_size = 2M
read_rnd_buffer_size = 16M
sort_buffer_size = 8M
join_buffer_size = 8M

# InnoDB settings
innodb_file_per_table = 1
innodb_flush_log_at_trx_commit = 2
innodb_log_buffer_size = 64M
innodb_buffer_pool_size = 4G
innodb_thread_concurrency = 8
innodb_flush_method = O_DIRECT
innodb_log_file_size = 512M

[mysqld_safe]
log-error=/var/log/mariadb/mariadb.log
pid-file=/var/run/mariadb/mariadb.pid

#
# include all files from the config directory
#
!includedir /etc/my.cnf.d

启动数据库

1
2
systemctl start mariadb
systemctl enable mariadb

初始化数据库

1
/usr/bin/mysql_secure_installatio

初始化root用户密码和其它一些选项

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[...]
Enter current password for root (enter for none):
OK, successfully used password, moving on...
[...]
Set root password? [Y/n] Y
New password:
Re-enter new password:
[...]
Remove anonymous users? [Y/n] Y
[...]
Disallow root login remotely? [Y/n] N
[...]
Remove test database and access to it [Y/n] Y
[...]
Reload privilege tables now? [Y/n] Y
[...]
All done! If you've completed all of the above steps, your MariaDB
installation should now be secure.

Thanks for using MariaDB!

下载 jdbc 驱动

master节点上下载,因为 Maria 兼容 MySql ,所以直接下载 mysql 的 jdbc 驱动就行

1
2
3
wget https://dev.mysql.com/get/Downloads/Connector-J/mysql-connector-java-5.1.46.tar.gz
mkdir -p /usr/share/java/
cp mysql-connector-java-5.1.46/mysql-connector-java-5.1.46-bin.jar /usr/share/java/mysql-connector-java.jar

创建数据库

登录 DB 并创建对应的数据库和用户,用于后续 CM 程序使用

1
mysql -u root -p

执行语句

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
CREATE DATABASE scm DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON scm.* TO 'scm'@'%' IDENTIFIED BY '123456';
CREATE DATABASE amon DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON amon.* TO 'amon'@'%' IDENTIFIED BY '123456';
CREATE DATABASE rman DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON rman.* TO 'rman'@'%' IDENTIFIED BY '123456';
CREATE DATABASE hue DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON hue.* TO 'hue'@'%' IDENTIFIED BY '123456';
CREATE DATABASE metastore DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON metastore.* TO 'hive'@'%' IDENTIFIED BY '123456';
CREATE DATABASE sentry DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON sentry.* TO 'sentry'@'%' IDENTIFIED BY '123456';
CREATE DATABASE nav DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON nav.* TO 'nav'@'%' IDENTIFIED BY '123456';
CREATE DATABASE navms DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON navms.* TO 'navms'@'%' IDENTIFIED BY '123456';
CREATE DATABASE oozie DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
GRANT ALL ON oozie.* TO 'oozie'@'%' IDENTIFIED BY '123456';

确认是否创建成功

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
MariaDB [(none)]> SHOW DATABASES;
+--------------------+
| Database |
+--------------------+
| information_schema |
| amon |
| hue |
| metastore |
| mysql |
| nav |
| navms |
| oozie |
| performance_schema |
| rman |
| scm |
| sentry |
+--------------------+

设置 CM 数据库

官方提供了一个脚本用于初始化 CM 相关的数据,执行如下命令:

1
/opt/cloudera/cm/schema/scm_prepare_database.sh mysql scm scm

执行完成

1
2
3
4
5
6
7
8
/opt/cloudera/cm/schema/scm_prepare_database.sh mysql scm scm
Enter SCM password:
JAVA_HOME=/usr/lib/jvm/java-openjdk
Verifying that we can write to /etc/cloudera-scm-server
Creating SCM configuration file in /etc/cloudera-scm-server
Executing: /usr/lib/jvm/java-openjdk/bin/java -cp /usr/share/java/mysql-connector-java.jar:/usr/share/java/oracle-connector-java.jar:/usr/share/java/postgresql-connector-java.jar:/opt/cloudera/cm/schema/../lib/* com.cloudera.enterprise.dbutil.DbCommandExecutor /etc/cloudera-scm-server/db.properties com.cloudera.cmf.db.
[ main] DbCommandExecutor INFO Successfully connected to database.
All done, your SCM database is configured correctly!

下载 CDH 离线包

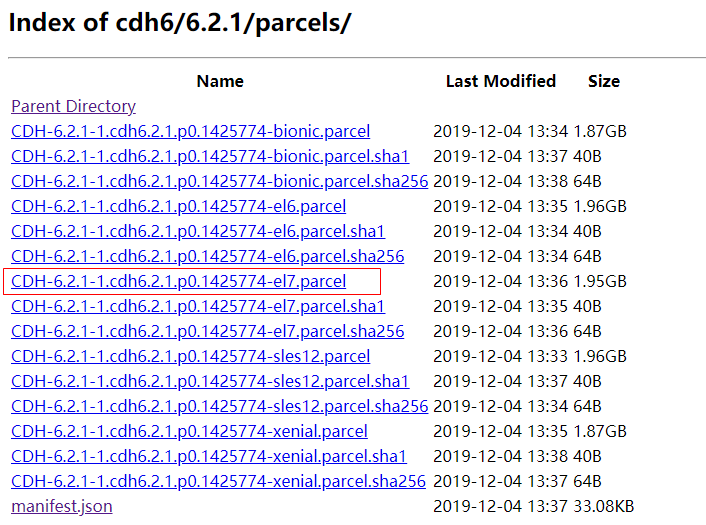

这里要注意的是,根据不同的操作系统需要下载对应的包,浏览器访问https://archive.cloudera.com/cdh6/6.2.1/parcels可以看到所有包,由于我这里用的是CentOS7,所以选择下载CDH-6.2.1-1.cdh6.2.1.p0.1425774-el7.parcel

  • 下载
1
wget https://archive.cloudera.com/cdh6/6.2.1/parcels/CDH-6.2.1-1.cdh6.2.1.p0.1425774-el7.parcel

下载慢的话参考上一步的解决办法,下载完成后将文件复制到/opt/cloudera/parcel-repo目录

  • 复制到/opt/cloudera/parcel-repo目录
1
2
mkdir -p /opt/cloudera/parcel-repo
mv CDH-6.2.1-1.cdh6.2.1.p0.1425774-el7.parcel /opt/cloudera/parcel-repo/
  • 生成sha1签名文件
1
sha1sum CDH-6.2.1-1.cdh6.2.1.p0.1425774-el7.parcel | awk '{ print $1 }' > CDH-6.2.1-1.cdh6.2.1.p0.1425774-el7.parcel.sha
  • 修改目录所属用户
1
chown -R cloudera-scm:cloudera-scm /opt/cloudera/parcel-repo/*
  • 目录最终如下
1
2
3
ls -l /opt/cloudera/parcel-repo/
-rw-r--r--. 1 cloudera-scm cloudera-scm 2093332003 4月 9 10:19 CDH-6.2.1-1.cdh6.2.1.p0.1425774-el7.parcel
-rw-r--r--. 1 cloudera-scm cloudera-scm 41 4月 16 16:26 CDH-6.2.1-1.cdh6.2.1.p0.1425774-el7.parcel.sha

启动 CM 服务

master节点上运行以下命令:

1
systemctl start cloudera-scm-server

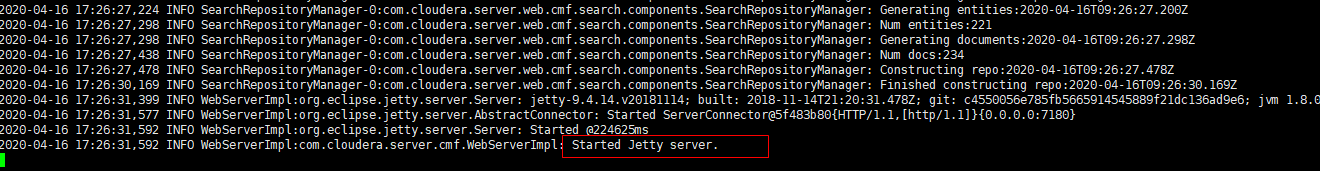

观察日志输出,当看到Started Jetty server.时表示服务已经启动成功了

1
tail -f /var/log/cloudera-scm-server/cloudera-scm-server.log

访问 CM 控制台

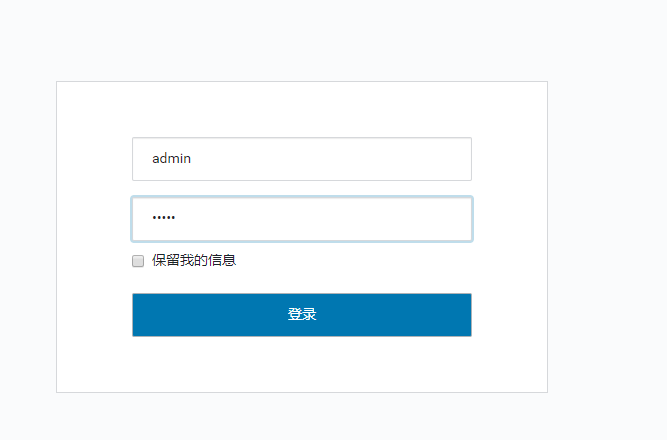

浏览器访问http://master.cdh:7180,账号密码统一为admin

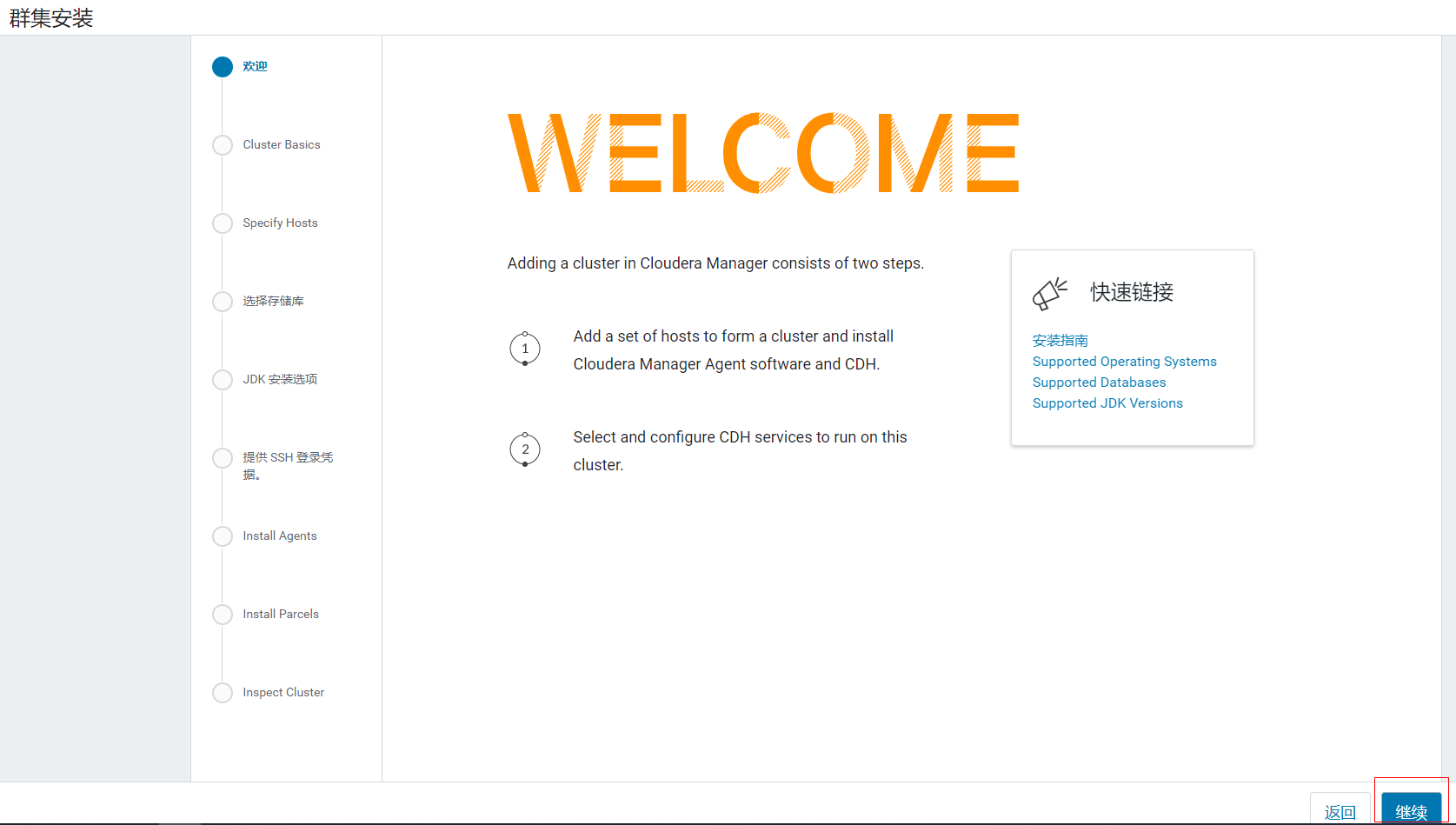

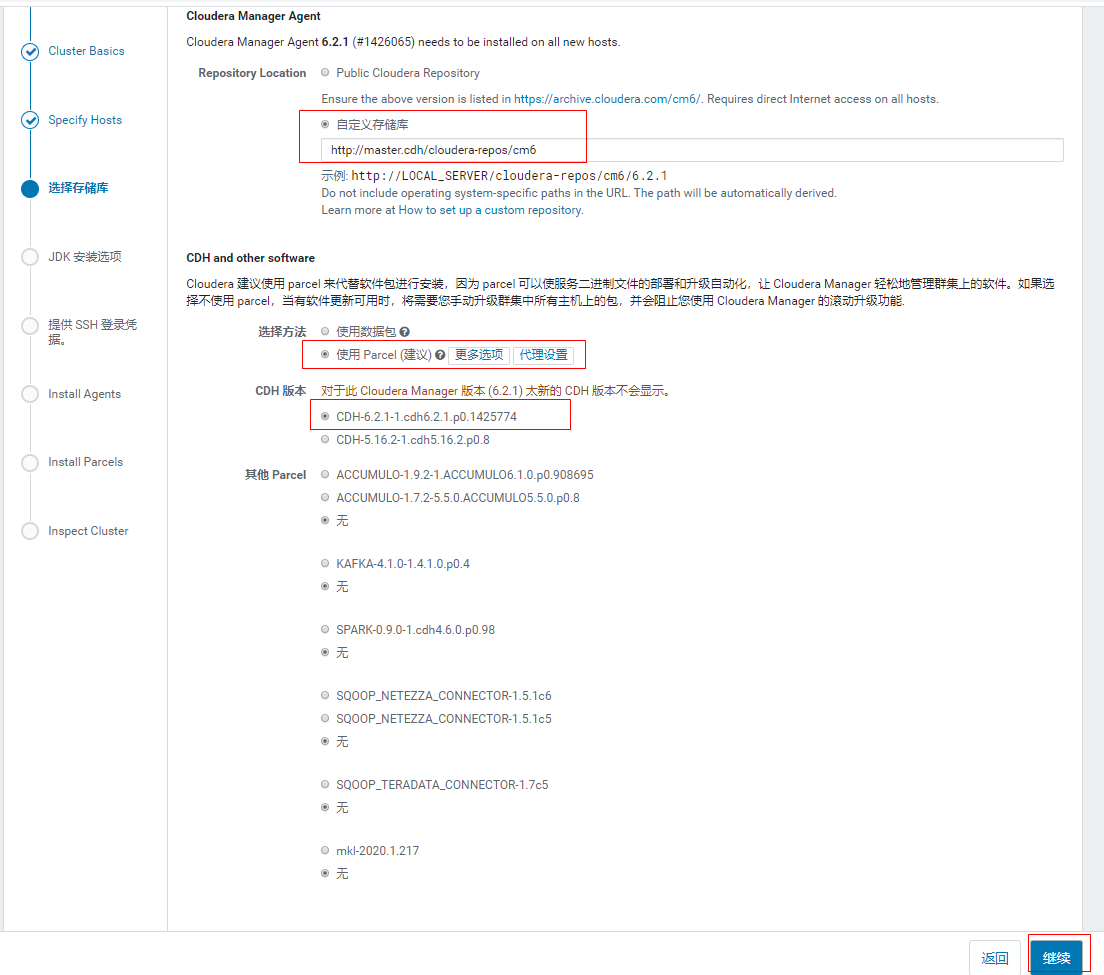

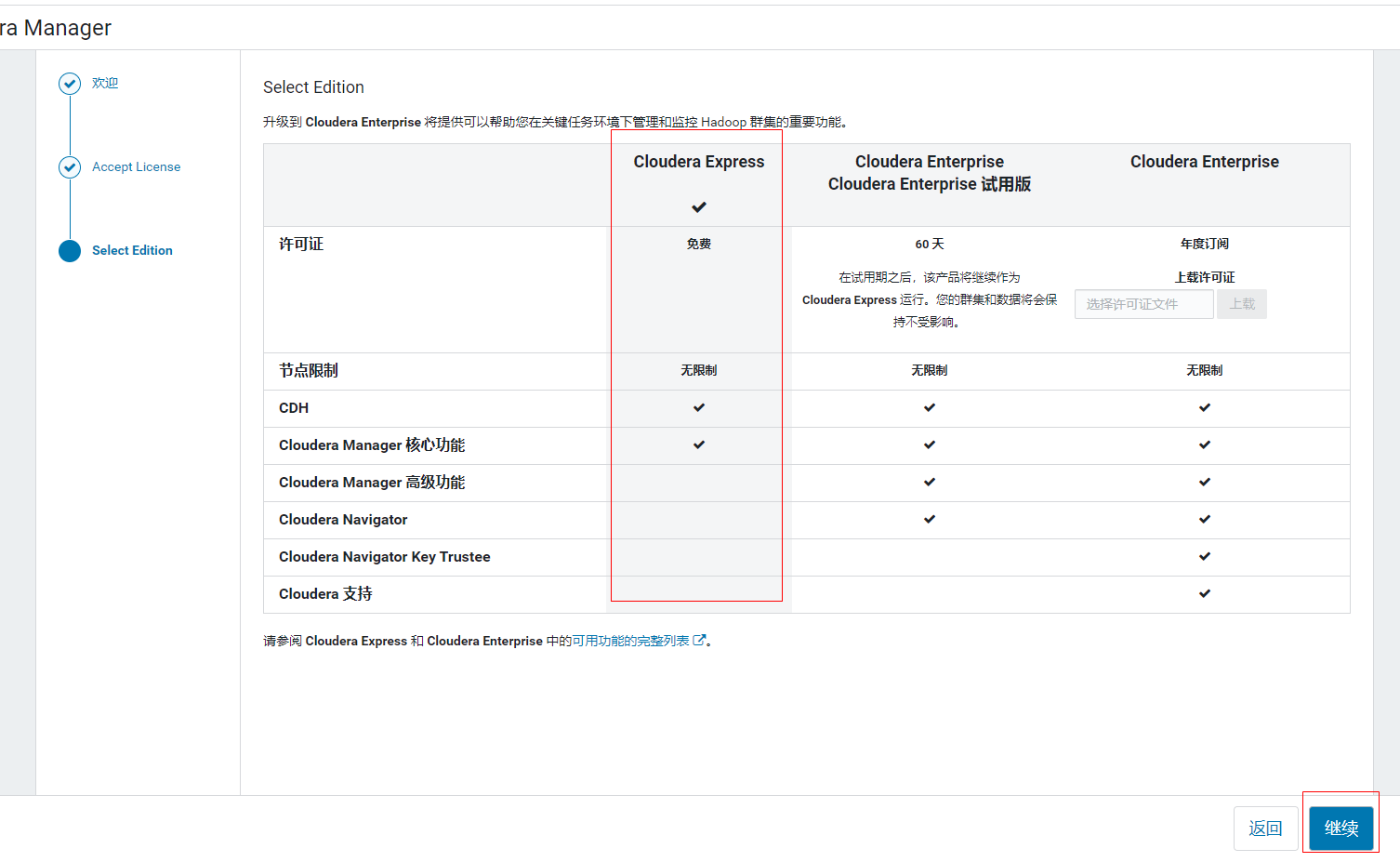

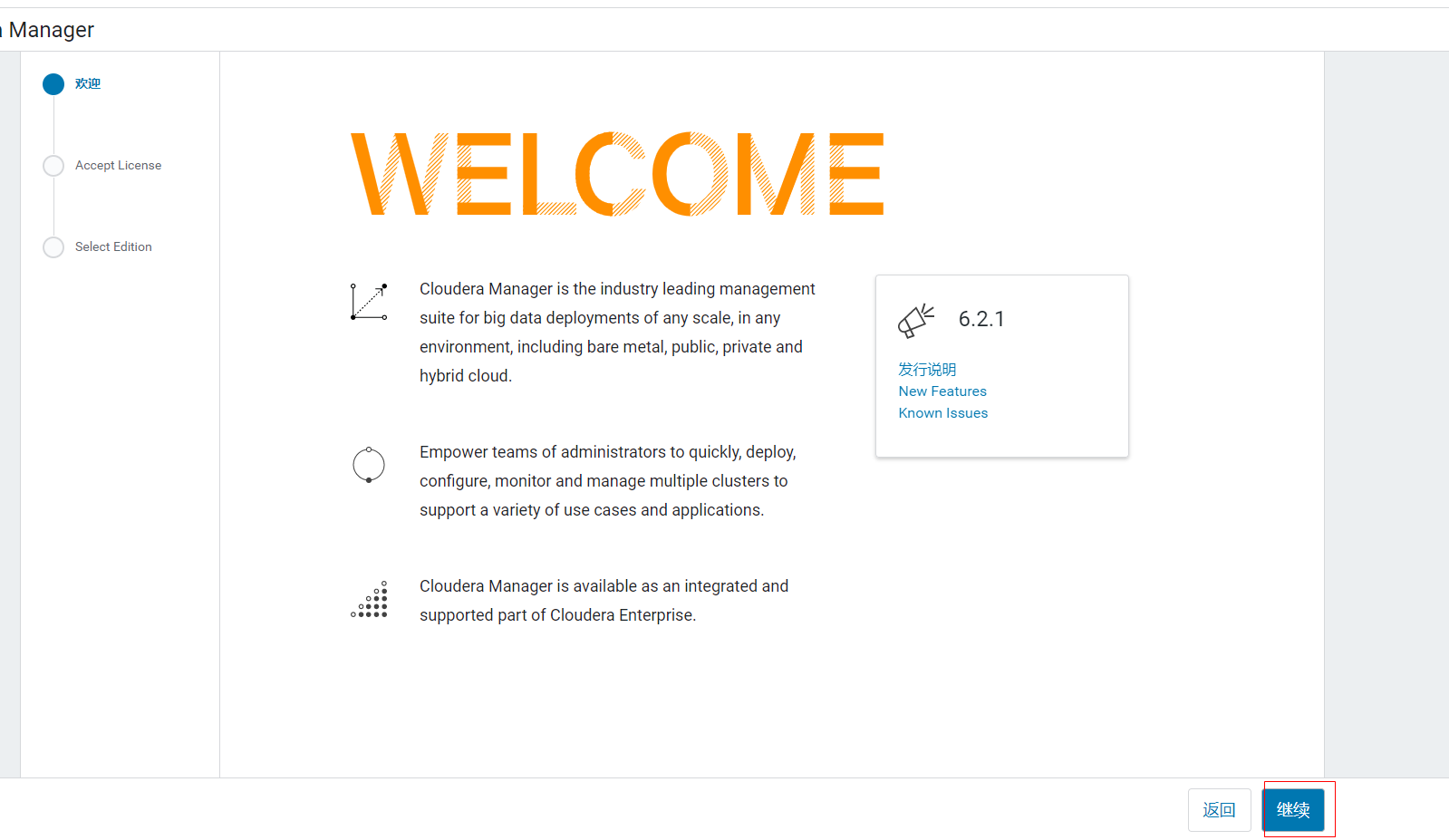

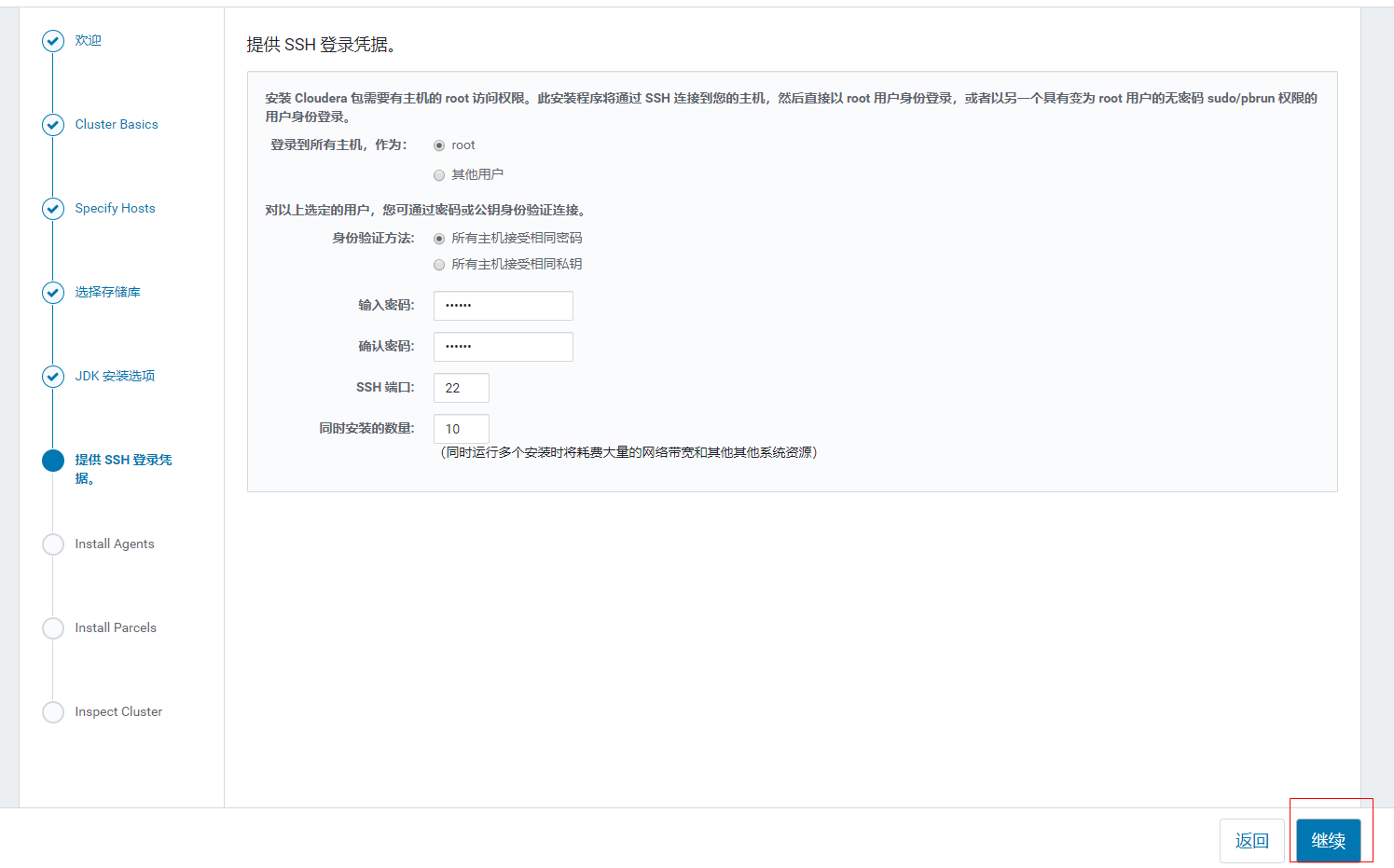

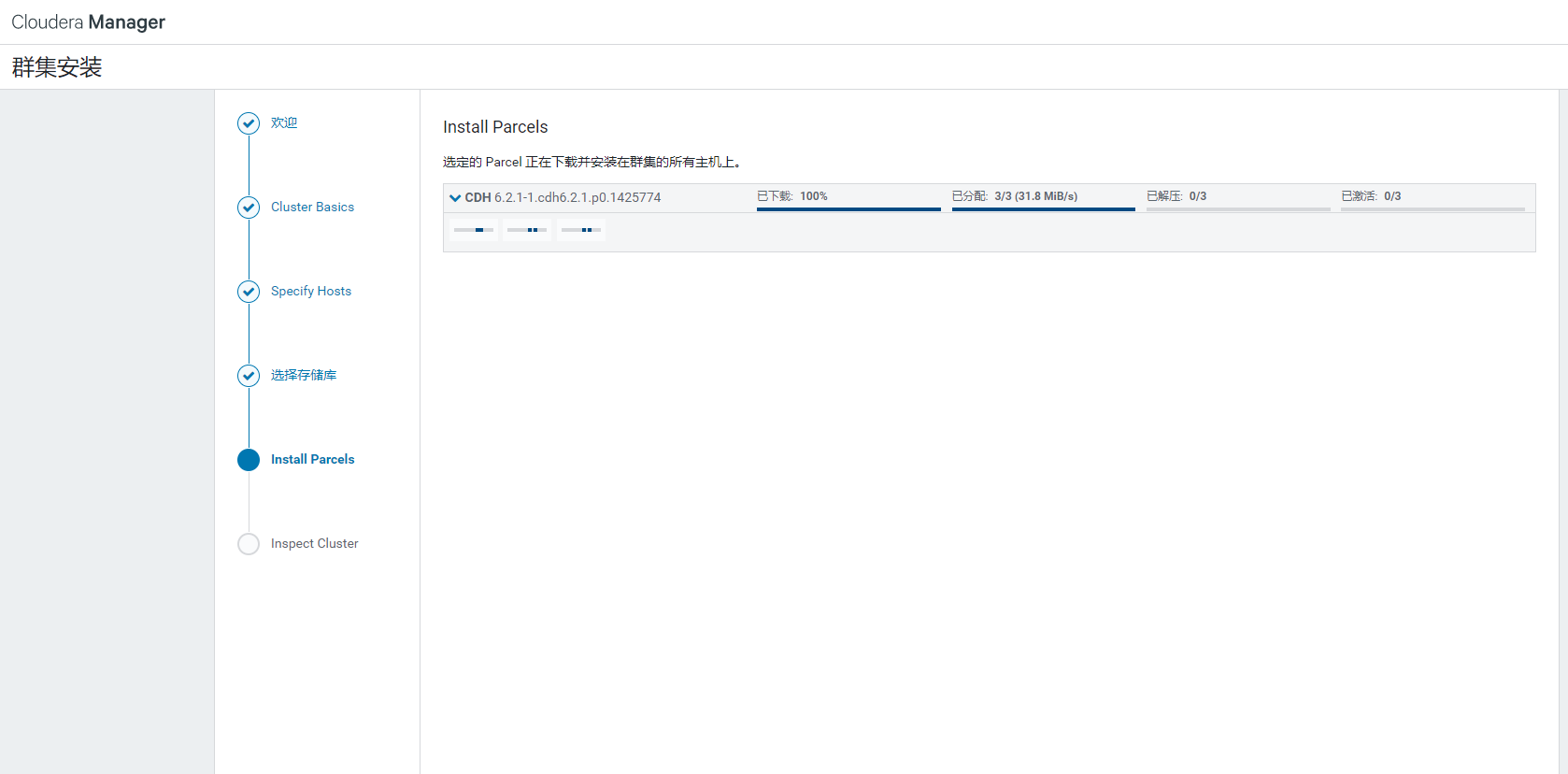

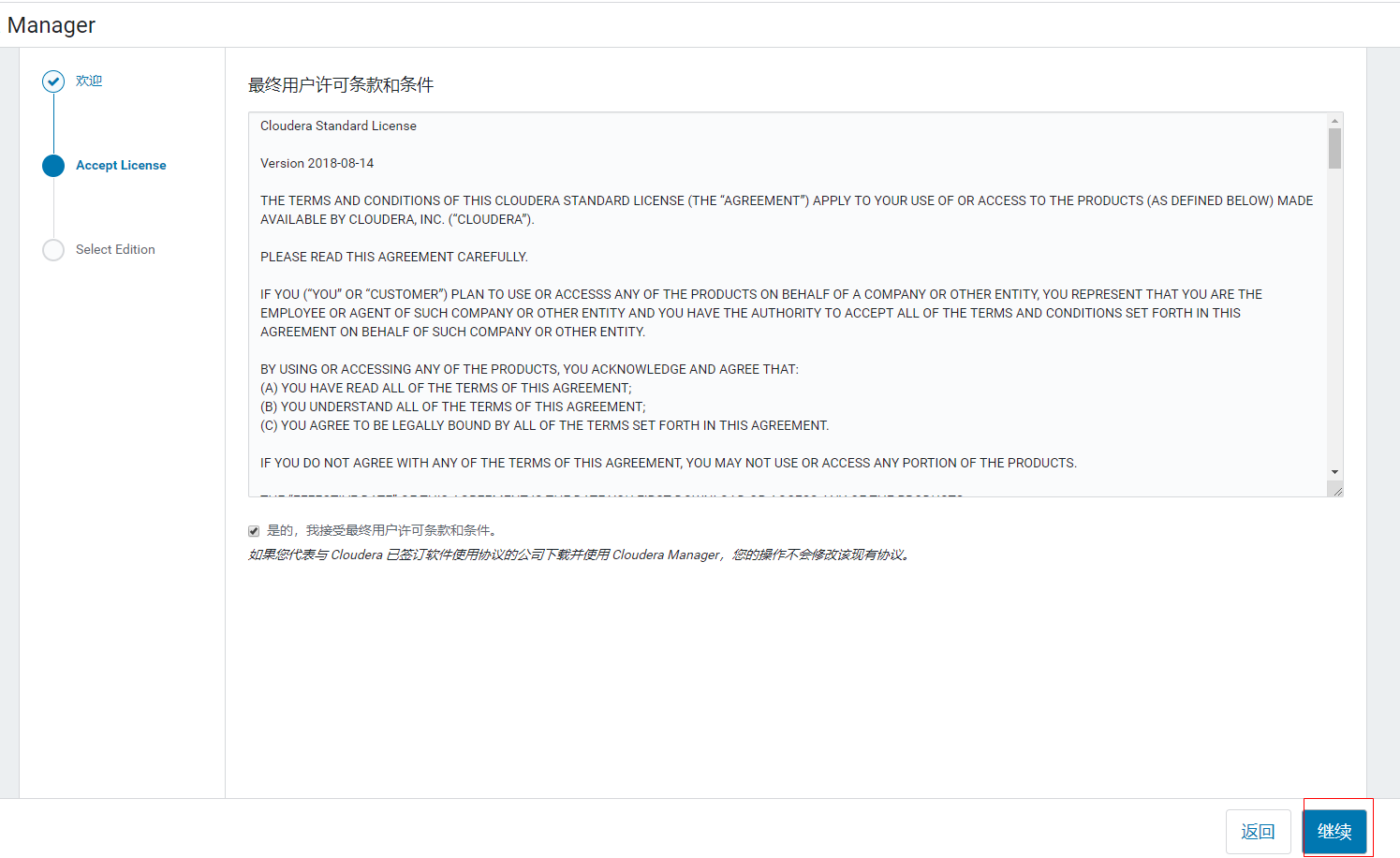

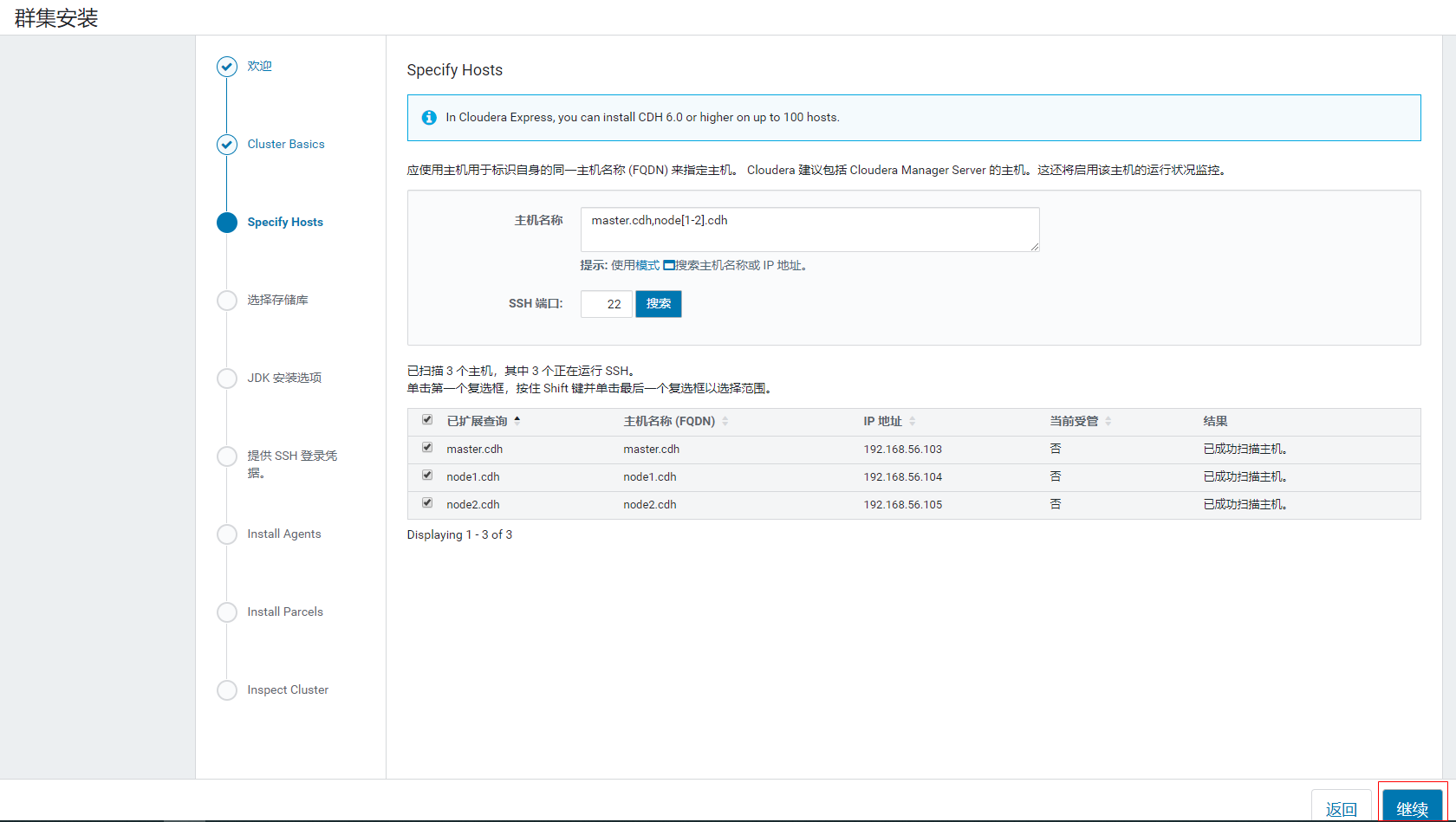

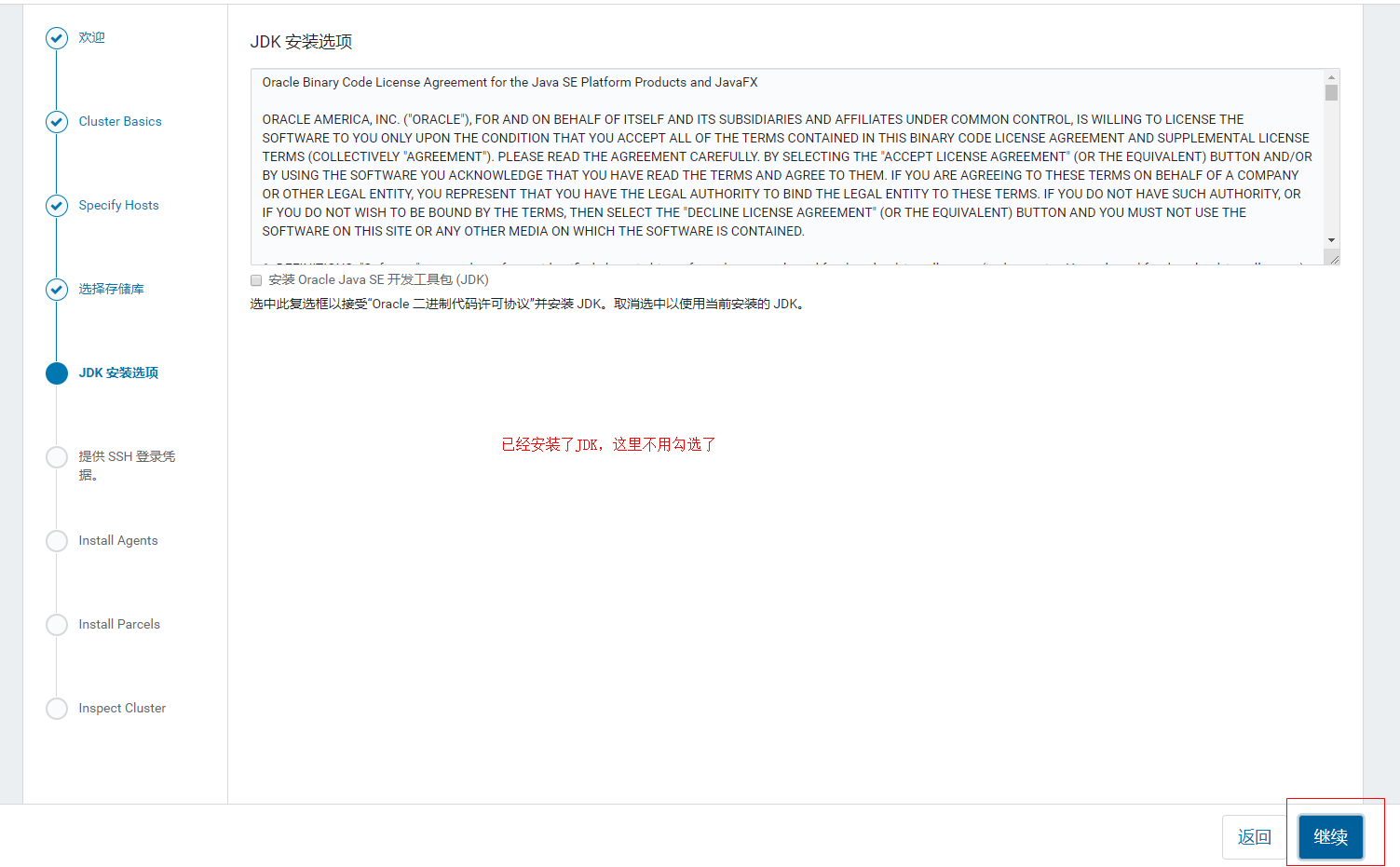

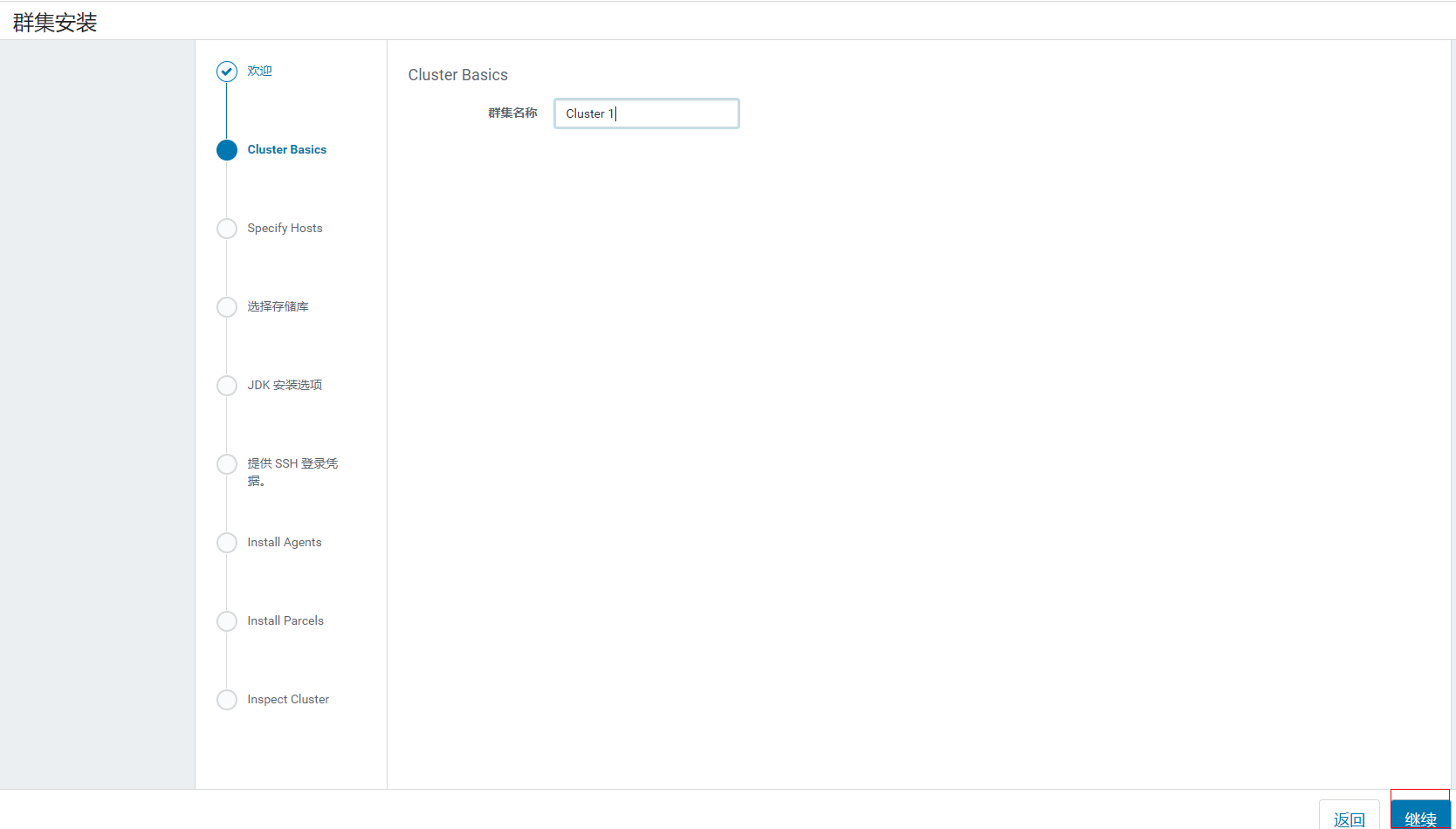

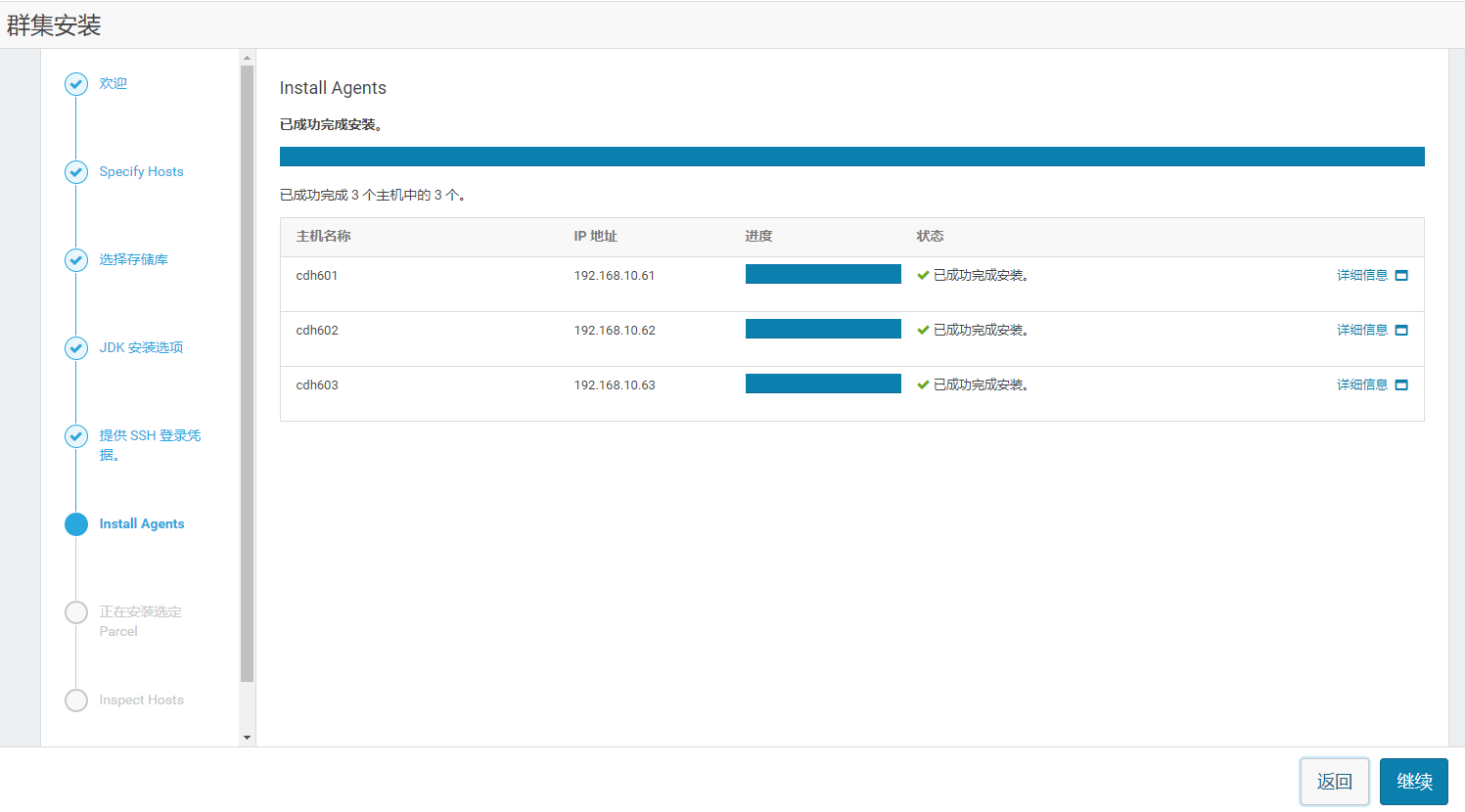

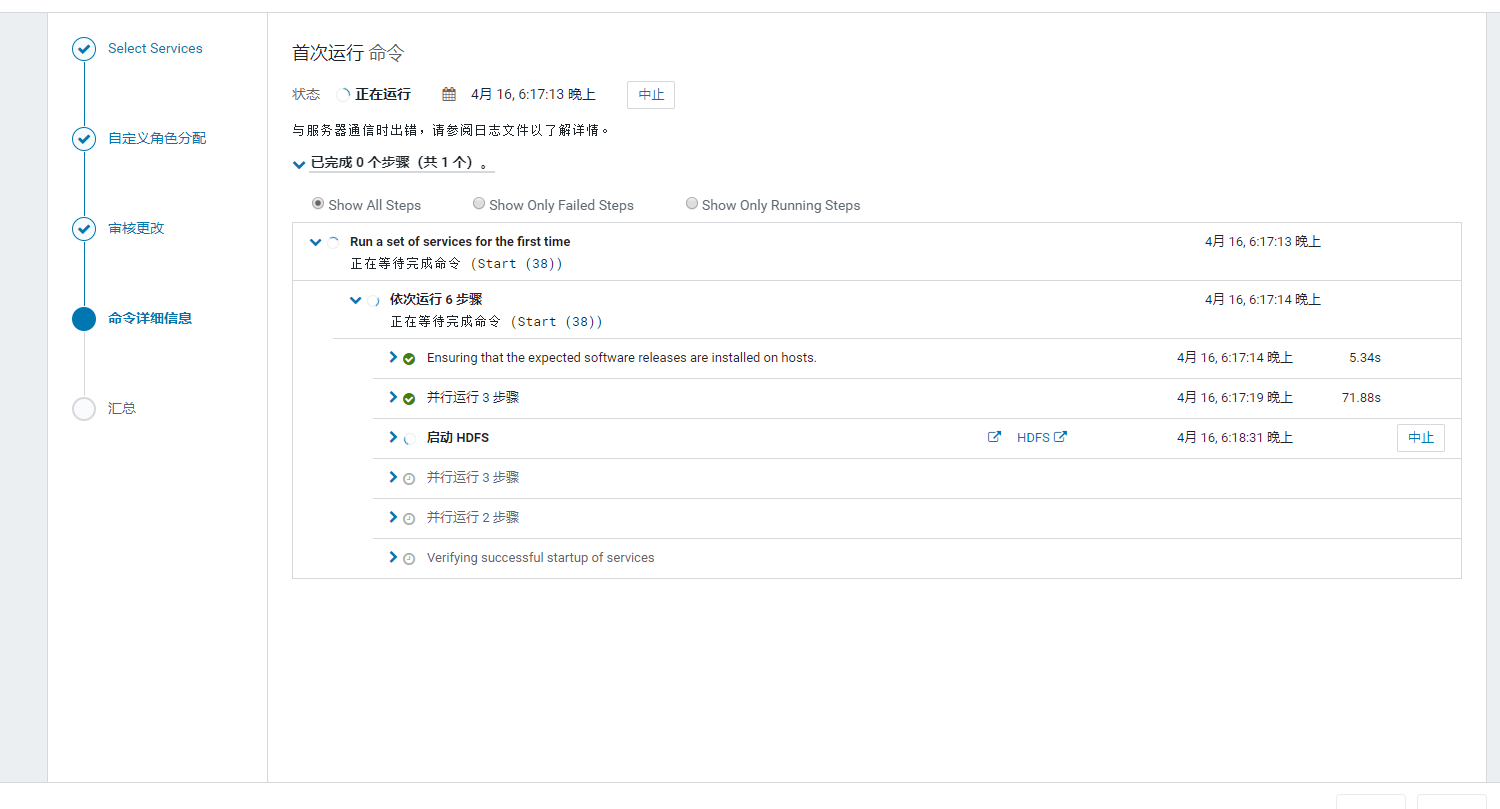

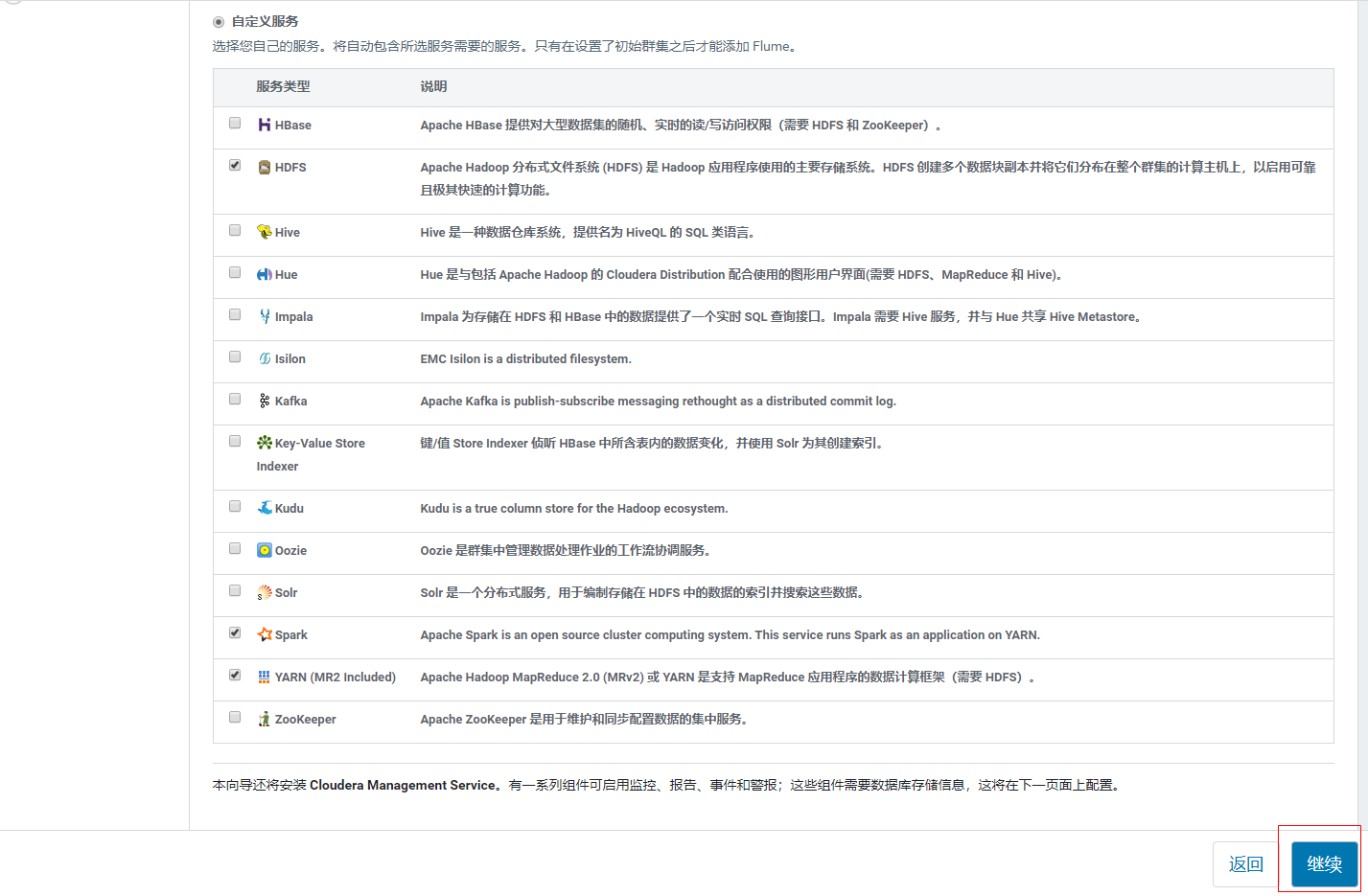

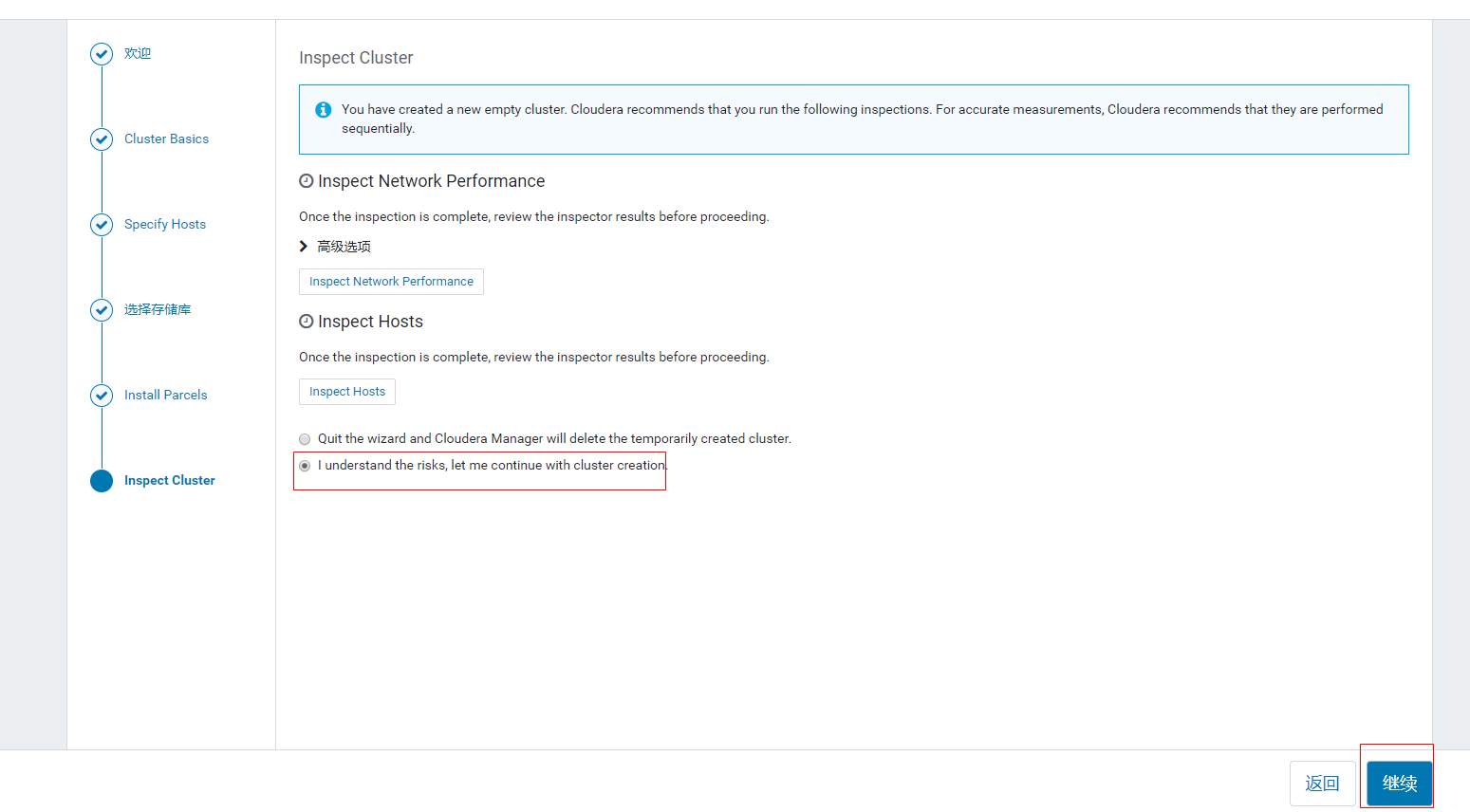

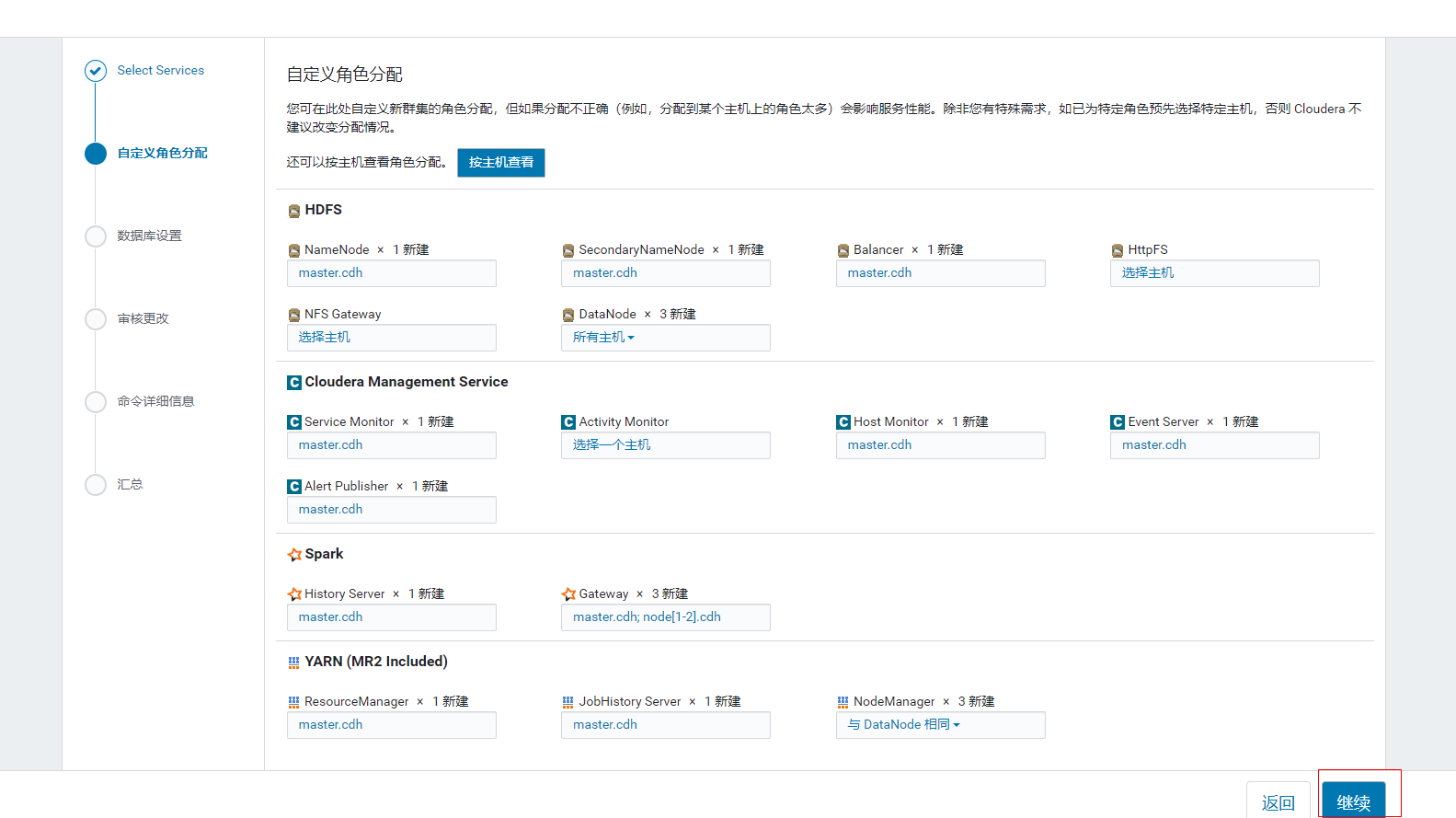

开始安装

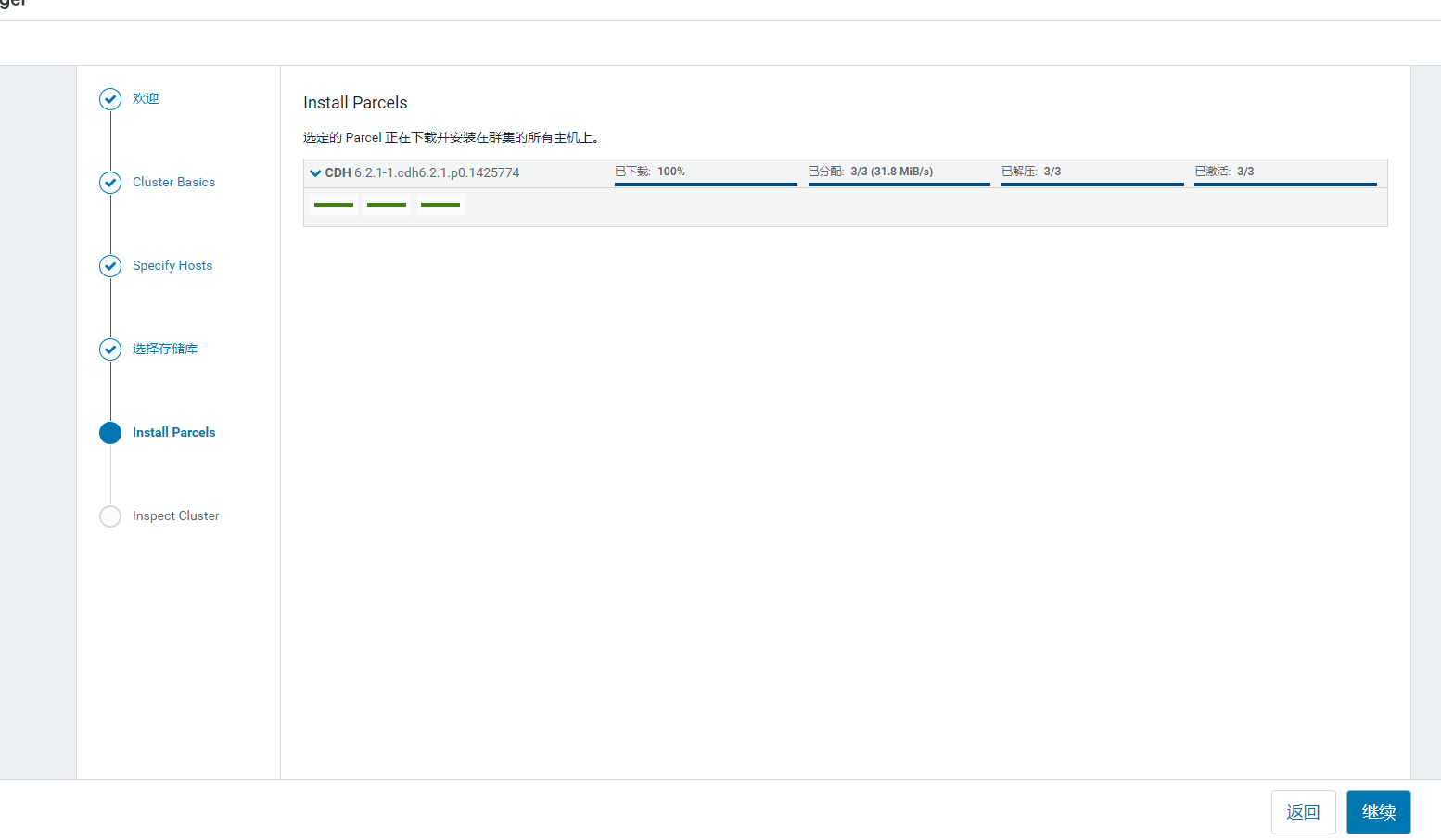

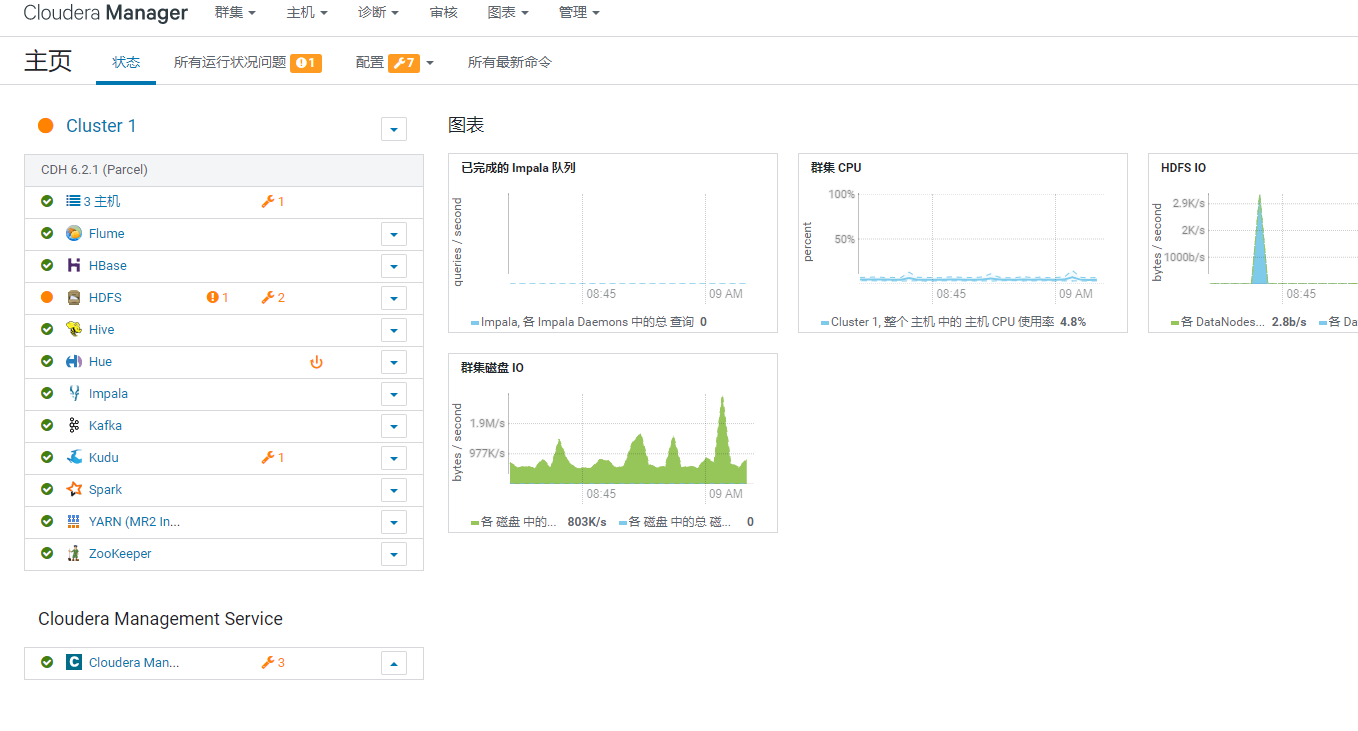

然后等到安装完成就行了,最终结果如下:
